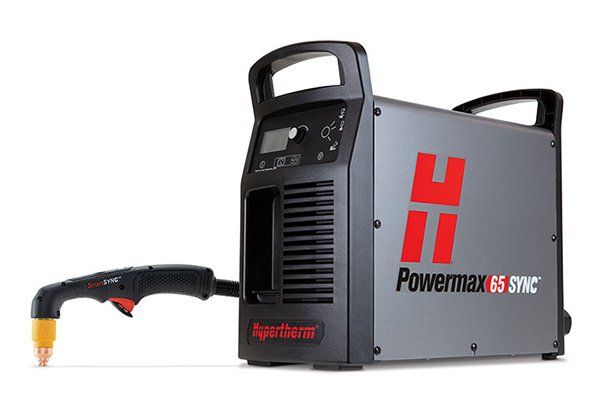

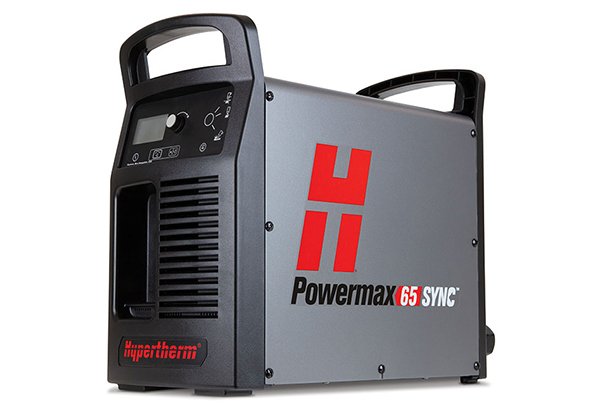

Capacity
Thickness
Cut speed

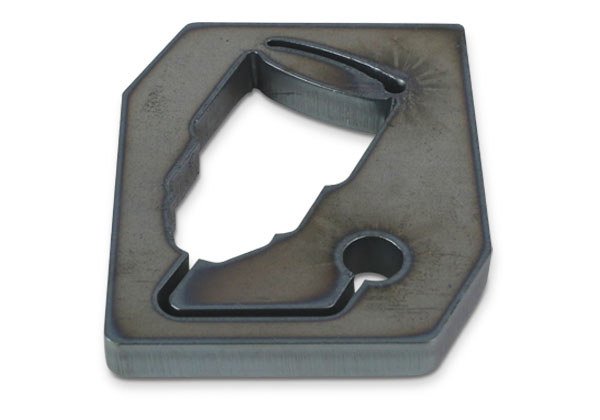

Cutting
Full
Recommended
16 mm (5/8")
22 mm (7/8")
500 mm/min (20 ipm)
250 mm/min (10 ipm)
Severance (hand cutting)
29 mm (1-1/8")
125 mm/min (5 ipm)
Pierce*
12 mm (1/2")
Capacity
Metal removal rate
Groove profile
Typical gouge
4.0 kg (8.8 lbs.) per hour
2.9 mm D x 6.4 mm W (0.11" D x 0.25" W)
Input voltages
200480 V, 1-PH, 50/60 Hz
200600 V, 3-PH, 50/60 Hz
Kilowatt output
9 kW
Input current
200/208/240/480 V,
1-PH 52/50/44/22 A @ 9 kW
200/208/240/480/600 V,
3-PH 32/31/27/13/13 A @ 9 kW
Output current
20-65 A
Rated output voltage
139 VDC
Duty cycle @ 104° F
50% @ 65 A, 230600 V, 1/3-PH
40% @ 65 A, 200208 V, 1/3-PH
100% @ 46 A, 230600 V, 1/3-PH
Open circuit voltage (OCV)
295 VDC
Dimensions with handles
483 mm D; 233 mm W; 430 mm H (19" D; 9.2" W; 17" H)
Weight with 6.1 m (20') torch
29 kg (61 lbs.)
Gas supply
Clean, dry, oil-free air or nitrogen
Optimum inlet gas pressure
7.6-8.3 bar (110-120 psi)
Minimum inlet gas pressure
5.2 bar (75 psi)
Recommended inlet gas flow rate
Cutting: 210 I/min @ 5.9 bar (450 scfh, 7.5 scfm @ 85 psi)
Gouging: 210 I/min @ 4.8 bar (450 scfh, 7.5 scfm @ 70 psi)
Input power cable length
3 m (10')
Power supply type
Inverter-IGBT
Engine drive requirement
15 kW for full 65 A output
Certifications
CSA-certified for use in the Americas and Asia, except China
Warranty
Power supplies have a 3-year warranty and torches a 1-year warranty
