Powermax105 SYNC plasma cutter

The Powermax105 SYNC® is a next-generation, professional-grade air plasma cutter that dramatically simplifies system operation for gouging and recommended cutting up to 32 mm (1-1/4). Features automated system process set-up via advanced RFID-enabled SmartSYNC® torches, and a revolutionary single-piece cartridge consumable that provides trackable utilization data. The Powermax105 SYNC maximizes productivity through reductions in downtime, optimized cut quality performance, and streamlined consumable inventory management.

System information

Applications

Drag cutting

For dragging the torch directly across the work piece

Extended reach cutting

For improved visibility and accessibility when cutting in confined spaces

Extended reach gouging

For improved visibility and accessibility when gouging in confined spaces

Fine feature cutting

For narrow kerf width with minimal dross and heat affected zone

Flush cutting

For cutting closer to base materials using a 45 degree

Max control gouging

For precise metal removal, shallower gouge profiles and light metal washing

Max removal gouging

For aggressive metal removal, deep gouge profiles, and extreme metal washing

Mechanized cutting

For portable automation and table cutting

Unsupported Applications

Marking

For scoring, indicating part identification, hole or weld locations

Precision gouging

For spot and tack weld removal at very low output current (<25 A)

Benefits

Easy to use


  • Cartridges are easy to identify by process with clear laser marking and color coding to eliminate part mix-ups.
  • RFID-enabled SmartSYNC torches and cartridges automatically set the correct amperage and operating mode, eliminating setup errors.
  • End-of-life consumable detection eliminates the uncertainty of knowing when to change the cartridge.
  • Less operator fatigue when using hand torches with our new flexible lead. The lead has the same robustness of our previous lead jacket material and will also be used on robotic torches.

Minimize operation costs



  • Simplified system operation minimizes the time and costs spent on training and troubleshooting.
  • Reductions to downtime during consumable change-outs and elimination of costs associated with premature disposal of consumable parts.
  • Cartridge usage data provides valuable insights for improving cutting operations and consumable inventory management.

Maximize performance


  • Tackle a wide range of jobs with easily interchangeable torch styles and application specific cartridges for various types of cutting and gouging.
  • Optimized cartridge consumable design provides up to twice the life for handheld cutting and improved quality over life in mechanized setups compared to standard consumables.
  • Time-saving hand torch controls allow the operator to adjust the amperage on the fly, change cartridges and applications without returning to the power supply.

Industry-leading reliability


  • SmartSYNC torches are engineered for rugged, industrial environments.
  • SpringStart technology ensures consistent starting and a more reliable torch.
  • Industry-leading reliability reduces production downtime.

Specifications

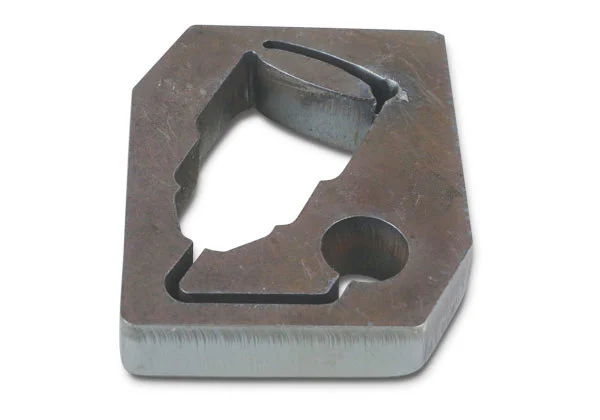

Cut capacity

Capacity

Thickness

Cut speed

Recommended

32 mm (1-1/4")

500 mm/min (20 ipm)



38 mm (1-1/2")

250 mm/min (10 ipm)

Severance (hand cutting)

50 mm (2")

125 mm/min (5 ipm)

Pierce*

22 mm (7/8")


*Pierce rating for handheld cutting, or mechanized cutting with programmable torch height control.

Maximum removal gouging

Capacity

Metal removal rate

Groove profile

Typical gouge

8.6 kg (19.1 lbs.) per hour

6.6 mm D x 6.0 mm W (0.26" D x 0.24" W)

General specifications

Input voltages

200600 V, 3-PH, 50/60 Hz

Kilowatt output

16.8 kW

Input current

200/208/240/480/600 V,


3-PH 58/56/49/25/22 A @ 16.8 kW

Output current

30-105 A

Rated output voltage

160 VDC

Duty cycle @ 104° F

70% @ 105 A, 240 V, 3-PH


80% @ 105 A, 480600 V, 3-PH


100% @ 94 A, 480600 V, 3-PH


100% @ 88 A, 240 V, 3-PH

Open circuit voltage (OCV)

300 VDC

Dimensions with handles

592 mm D; 274 mm W; 508 mm H (23.3" D; 10.8" W; 20.0" H)

Weight with 6.1 m (20') torch

45.3 kg (95 lbs.)

Gas supply

Clean, dry, oil-free air or nitrogen

Optimum inlet gas pressure

7.6-8.3 bar (110-120 psi)

Minimum inlet gas pressure

5.5 bar (80 psi)

Recommended inlet gas flow rate

Cutting: 260 I/min @ 5.9 bar (550 scfh, 9.2 scfm @ 90 psi)


Gouging: 260 I/min @ 4.8 bar (550 scfh, 9.2 scfm @ 70 psi)

Input power cable length

3 m (10')

Power supply type

Inverter-IGBT

Engine drive requirement

30kW for full 105 A output

Certifications

CSA-certified for use in the Americas and Asia, except China

Warranty

Power supplies have a 3-year warranty and torches a 1-year warranty
